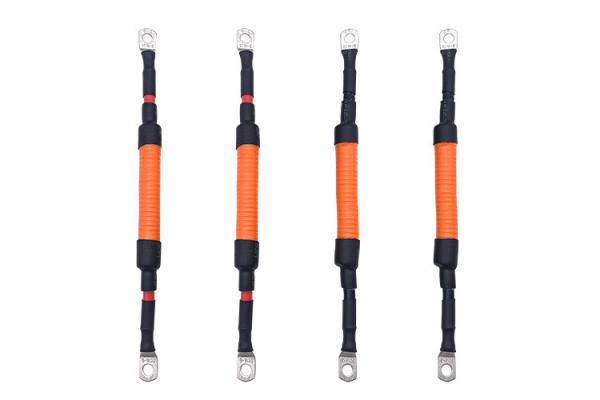

3034/0.20 Structure 380v UL 62 32A 5p 2c10AWG 1c10AWG 3c*18AWG EV Charging Evt Cable

Ask Lasest Price
Certification :	UL;ISO9001;ISO13485;IATF16949;TPU
Brand Name :	Linke
Price :	Negotiable
Delivery Time :	7-15 days
Payment Terms :	Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :	50000m/day

Add to Cart

Product Details
Company Profile

3034/0.20 Structure 380v UL 62 32A 5p 2c10AWG 1c10AWG 3c*18AWG EV Charging Evt Cable

Good Quality UL 62 32A 5P 2C*10AWG+1C*10AWG+3C*18AWG EV Charging EVT Cable

SPECIFICATION		CABLE NAME	EV Cable
		CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
		RoHS Compliant

Item		A : 2C×80mm2	B : 1C×25mm2	C : 1C×4mm2	D:(3C×0.75mm2)(P2)	E:(7C×0.75mm2)
CONDUCTOR	Material	Bared copper stranded
	Size	2580/0.20 ±0.008mm	798/0.20 ±0.008mm	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar
	O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm
INSULATION	Material	Thermoplastic(EF2585,85±3A)
	Min. average thickness	1.60mm	1.20mm	1.00mm	0.50mm	0.50mm
	Min.thickness at any point	1.34mm	0.98mm	0.80mm	0.35mm	0.35mm
	O.D.	15.60±0.40mm	9.60±0.30mm	4.70±0.20mm	2.50±0.10mm	2.50±0.10mm
CABLING-1	Filler	/			Cotton	Cotton
	Material	/			AL-mylar(facing out)	Non-woven
BRAID	Material	/			Tinned copper	/
	Size	/			0.12mm,≥60%	/
In-JACKET	Material	/			TPE	TPE
	Min. average thickness	/			0.60mm	0.60mm
	Min.thickness at any point	/			0.42mm	0.42mm
	O.D.	/			7.20±0.25mm	9.70±0.25mm
CABLING	Filler	Strengthed PP rope
	Material	Non-woven(≥25% overlapping)
	Assembly	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET	Material	TPU
	Min. average thickness	2.80mm
	Min.thickness at any point	2.28mm
	O.D.	38.00+0.6/-1.00mm

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage:DC 1000V	Tensile strength:≥20MPa	High temperature pressure test:≤50%
Rated temperature:Jacket -40~90ºC	Elongation:≥300%	Heat shock test:No crack
Insulation -40~125ºC	Aged condition:110±1ºC×168h	Compatibility test:GB/T 33594
Max. conductor resistance(20ºC):	Percent of original tensile strength:≤±30%	Crush resistance test:GB/T 33594
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Percent of original elongation:≤±30%	Curved around the test:GB/T 33594
Insulation Voltage withstand(Core A&B,10m):	Flame test:GB/T 18380.12-2008	Min. Bend radius:6*OD
AC 2.5kV/5min,leakage current ≤5mA	Artificial weathering test:GB/T 33594	Abrasion resistance:≥2000times
Completed cable Voltage withstand(Core A to A&B,10m):	Low-temperature impact test :-40ºC×16H,No crack	Resistance against chemicals:GB/T 33594
AC 3.5kV/15min,leakage current ≤5mA	Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B):500MΩ.km	Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21

Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C

2,Low viscosity appearance

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
