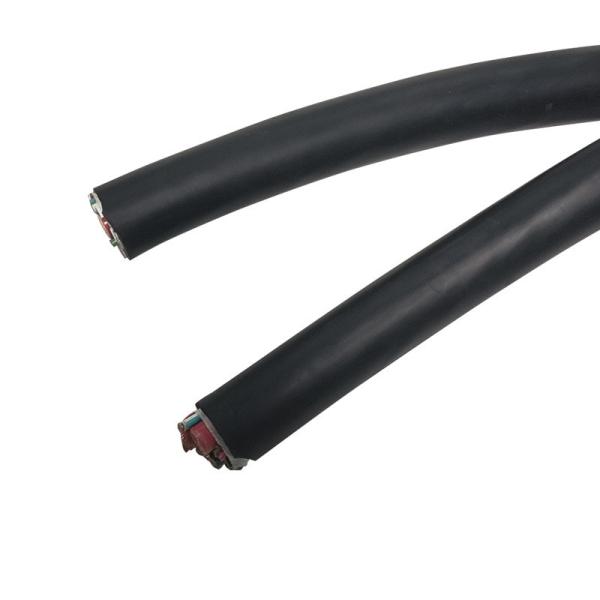

TUV Certified H07bz5-F 3G1.5mm² +2X0.5mm² AC EV Charging Cable
Product Description
Product Features:
√ It is used to connect charging between the car and the charging
pile
√ Flexible and easy to bend
√ Good delay combustibility,Pass single vertical flame test
√ Excellent heat resistance, aging resistance, thermal overload
resistance, low temperature resistance,
liquid resistance, oil resistance, damp heat resistance, UV
resistance, ozone resistance, etc.
| Standard: | EN50620:2017;IEC62893-3:2017 |
| Conductor: | Bare or tinned copper stranded,comply with IEC60228/VDE0295 class 5
or class 6 |
| Rated Voltage: | 300V/500V;450V/750V |
| Min.Installation&Handling Temp.: | ~35ºC(EN50620) ~25ºC(IEC62893) | Max. Storage Temp.: | 40ºC(EN50620) 45ºC(IEC62893) |
| Max.Temp. at Conductor: | 90ºC | Min. bend radius: | 5D(D:OD) |
| Jacket: | TPU or XLPE | Insulation | XLPE |
| RoHS: | Approved | Reach: | Approved |
| Model | Applicable flexible cord | Certificate |
H05BZ5-F
62893 IEC 121 | 3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm² (n=0~8) | TUV |
H05BZ6-F
62893 IEC 122 | 3G1.5mm²~2.5mm²+n*0.5mm²~1.0mm²(n=0~8) |
H07BZ5-F
62893 IEC 123 | 3G1.5mm²+n*0.5mm²~1.0mm²(n=0~8) |
| 3~5G2.5mm²~35mm²+n*0.5mm²~1.0mm²(n=0~8) |
H07BZ6-F
62893 IEC 124 | 3G1.5mm²+n*0.5mm²~1.0mm²(n=0~8) |
| 3~5G2.5mm²~16mm²+n*0.5mm²~1.0mm²(n=0~8) |
Company Profile
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a
leading cable supplier in China.
In the past over 10 years, Linke Cable has been focusing on
R&D, production and marketing of
wire and cable. Linke provide various cables&custom cable
solutions for all over the world.
We are specialized in EV charging cable, medical cable, silicone
cable, spring cable, braided cable,
towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better
cables to market. We use an engineer-to-engineer approach to
develop better cables for customers and improve the quality of
one's life.
Certifications
We past
UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269
(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,
UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or
AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class
I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class
I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from
the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for
the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the
freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card
to promote your company.
For More Information, Please do feel free to contact us!
