120mm2 Voltage EV Cable Wiring Harness with Silicone Shielded Cable and Package Size

Detailed Photos

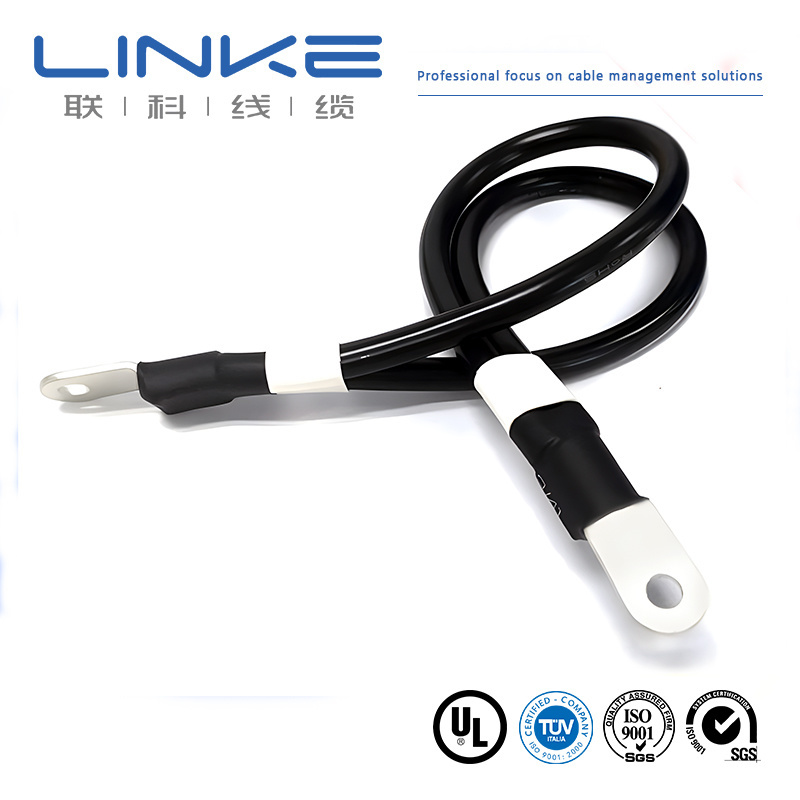

BoosterJumper cables for auto car jumping cables power charging cable

Structure
NO.	conductor mm2							insulution			20ºC conductor resistance (Ω/KM)
	conductor mm2	Structure(N/mm)		Conductor DIA(mm)	Conductor			Thickness (mm)	MATERIAL	insulution OD (mm)
EV-YJ	1.5	48/0.20		1.60	copper			0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20		2.06	copper			0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20		2.62	copper			0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20		3.50	copper			0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20		4.50	copper			1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20		5.70	copper			1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20		7.10	copper			1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20		8.50	copper			1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20		10.10	copper			1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20		12.10	copper			1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20		14.10	copper			1.50	silicone	17.50±0.50	≤0.196

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,

UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
