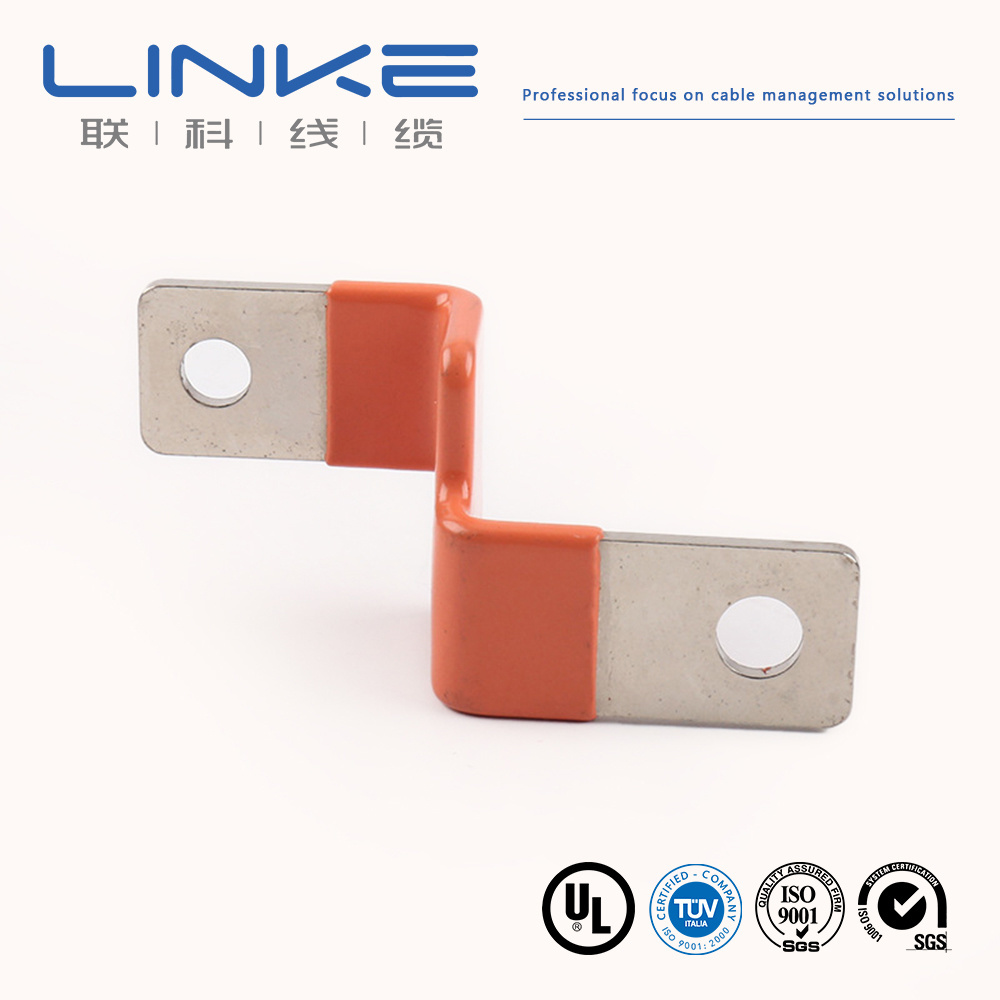

    Insulated Copper Bus bar for Automobiles And Locomotives

    Ask Lasest Price
    Brand Name : Linke
    Certification : RoHS, TUV, CE, ISO
    Price :
    Delivery Time : 7-15 days
    Payment Terms : Advance 30% deposit and ship after receiving 70% final payment
    Supply Ability : 50000m/day
    • Product Details
    • Company Profile

    Insulated Copper Bus bar for Automobiles And Locomotives

    Insulated Copper Bus bar for Automobiles And Locomotives


    Flexible busbar is through brazing the copper foil parts together,which is 99.9% copper contented. It capitals

    the products excellect conductivity with less impurities. Laminated copper busbar have more current carrying surface area.
    Copper foil: 0.05mm to 0.3mm thick. The contact surface can be tinned or silvered according to

    the user's requirements.The current is based on the customer's requirement of 1 square knitting

    belt & the effective loads current 4A calculation. Copper conductors with different sectional areas

    have different parameters. The large area can be multi-layer or set.The price depends on the current

    copper price and current size.

    Material StandardGB : T2 Copper with Min. 99.9%
    DIN: E-Cu58 (Number: 2.0065)
    EN: Cu-ETP ( Number: CW004A)
    ISO: Cu-ETP
    UNS: C11000
    JIS: C1100
    BS: C101
    Other Material also can be customized
    Resistance
    0.00001Ω
    Conductivity
    57%
    Copper Foil of
    Single Layer Thickness
    0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure,
    we will advise suitable thickness
    Insulation MaterialPVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.
    Insulation PerformancePE and PVC are good, PVC dipping is better than PE heat shrink tubes
    Flame Retardant/Fire ResistanceUL94-V-0 or upon you request
    Leakage TestingPVC Dipping Sleeves:
    In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
    In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
    Or upon your working voltage, we advise to choose better solution.
    Surface PlatingNickel, tin or silver plated etc
    Plating Thickness:Normally 3um to 12um
    or upon customers' request
    Salt Spray TestingIn a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
    Bending TestingBend 10000 times in 15 radian angle without breakage or fracture.
    Temperature Rise TestingDepend on flexible busbar cross-sectional area,
    We can offer all temperature rising test report before delivery if you request
    Operating Temperature
    -45 to +150 ºC
    Copper Foil Tensile Strength≥500N
    Quote TimeQuotation sheet will be sent in 1-3 working days when receive your enqiury
    Sample/Trial Order
    Delivery Time
    In 5 -15 working days according to different bus bar structure and manufacture process
    Quality Management StandardMeet Auto Industry IATF 16949
    Eco-friendly Certificate
    ROHS, REACH
    Good Price Insulated Copper Bus Bar for Automobiles and Locomotives
    Good Price Insulated Copper Bus Bar for Automobiles and Locomotives
    Conductor : Flexible Bare annealed copper wire
    Insulation:copper
    Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
    SQ MM sizes (European style) :customization
    AWG sizes (North American style) :customization
    Wide temperature range: customization
    2,Low viscosity appearance
    Good Price Insulated Copper Bus Bar for Automobiles and Locomotives
    Conductor : Flexible Bare annealed copper wire
    Insulation:Silicone
    Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
    SQ MM sizes (European style) :4 sq mm to 240 sq mm
    AWG sizes (North American style) :0AWG-10AWG,
    Wide temperature range: -60°C to 200°C
    Company Profile:

    Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

    Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

    cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

    braided cable, towlobe cable, UL wire, automotive cable, etc.

    At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

    to develop better cables for customers and improve the quality of one's life.
    Good Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and Locomotives

    Our certification:

    We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
    UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,

    UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

    ISO9001 and ISO13485,TS16949

    CNR- Appliance Wiring Material,

    Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

    Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
    Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

    Good Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and LocomotivesGood Price Insulated Copper Bus Bar for Automobiles and Locomotives

    FAQ

    1. Are you a manufacturer or trading company?
    We are a professional manufacturer. We can control your order from the first begining to the last.

    Welcome to visit us. We'll pick you up in Shenzhen.

    2. How can I get a sample to test your quality?
    The samples are free for you. New clients are expected to pay for the courier cost.

    3. What's your Minimum Order Quantity?
    Normally 100m. However, the cable is very heavy.
    You'd better order a suitable quantity to avoid the high freight.
    Sea transportation is the best option.

    4. Can I get a discount?
    It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

    5. Does your company accept OEM production?
    Yes, could print your company name, we even custom the quality card to promote your company
