DESCRIPTION | 說 明 |
| ·Strand, tinned or bare conductor,30-16AWG | ·導體使用絞線30-16 AWG裸銅或鍍錫銅 |
| ·Color-coded PVC insulation | ·聚氯乙烯絕緣 |
| ·Rated temperature:80℃ | ·額定溫度:80℃ |
| ·Rated voltage:300volts | ·額定電壓:300伏 |
| ·Uniform thickness of wire to ensure easy stripping and cutting. | ·使用標準厚度,易剝,切斷容易 |
| ·Passes UL VW-1 vertical flame test | ·通過UL VW-1 垂直燃燒測試 |
| ·Passes UL/C(UL) approval | ·通過UL/C(UL)認證 |
| ·Refer to standard UL 758 | ·參考標準UL 758 |
| Application | 應 用 |
| ·Internal wiring of Audio/Video Equipment and Appliances | ·影音儀器及電器安裝用電線 |

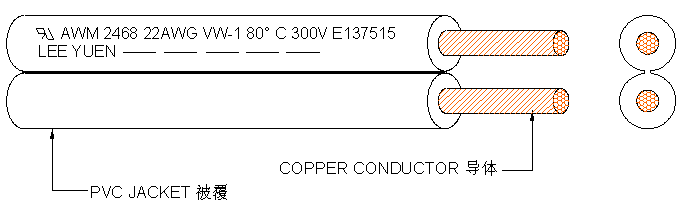

| Structure | 構 造 |
UL STYLE & C(UL) TYPE | Size 線號 | Conductor Construction 導體結構 | Stranding Diameter 絞合直徑 | Insulation Thickness 絕緣厚度 | Overall Diameter 完成外徑 | Standard put-up標準長度 | |
英制 | 公制 | ||||||
| AWG | No./mm | mm | mm | mm | Feet/coil | Meter/coil | |
| UL2468 | 30X2 | 7/0.10 | 0.31 | 0.40 | 1.15X2.30 | 2000 | 610 |
| 28X2 | 7/0.12 | 0.37 | 0.40 | 1.25X2.50 | 2000 | 610 | |
| 26X2 | 7/0.16 | 0.49 | 0.40 | 1.35X2.70 | 2000 | 610 | |
| 24X2 | 11/0.16 | 0.61 | 0.40 | 1.50X3.00 | 2000 | 610 | |
| 22X2 | 17/0.16 | 0.76 | 0.40 | 1.75X3.50 | 2000 | 610 | |
| 20X2 | 26/0.16 | 0.94 | 0.40 | 2.00X4.00 | 2000 | 610 | |
| 18X2 | 41/0.16 | 1.18 | 0.40 | 2.20X4.40 | 2000 | 610 | |
| 16X2 | 26/0.254 | 1.49 | 0.40 | 2.40X4.80 | 2000 | 610 | |
