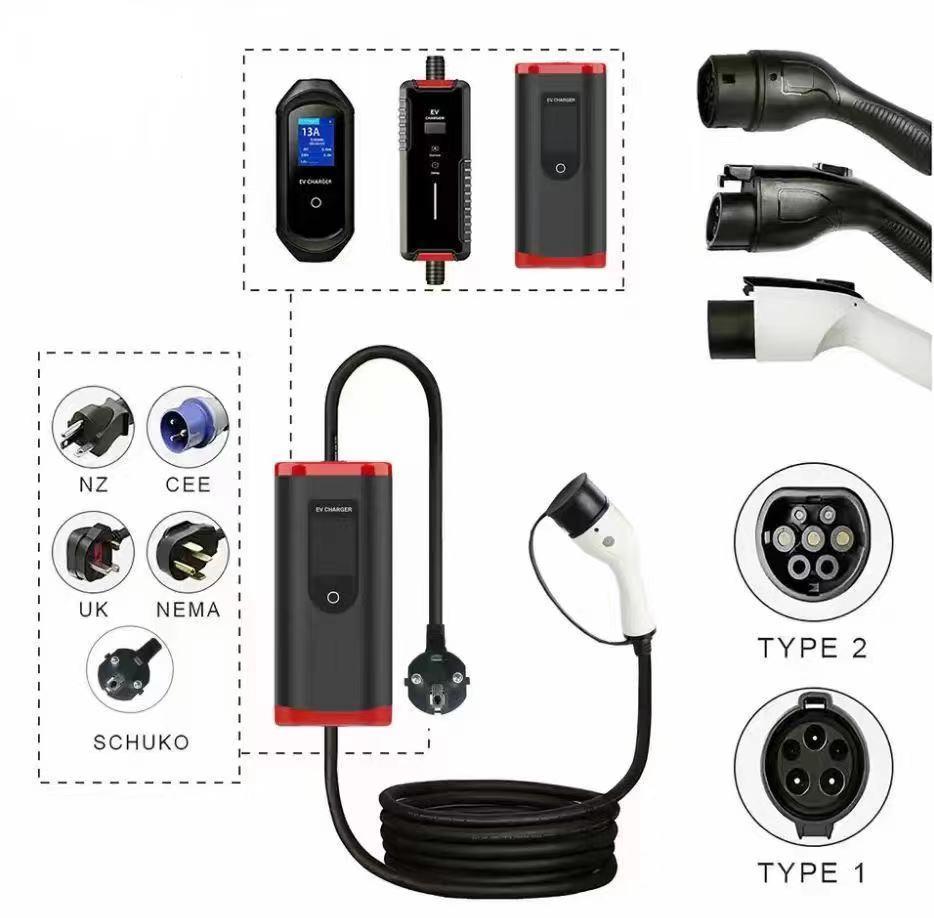

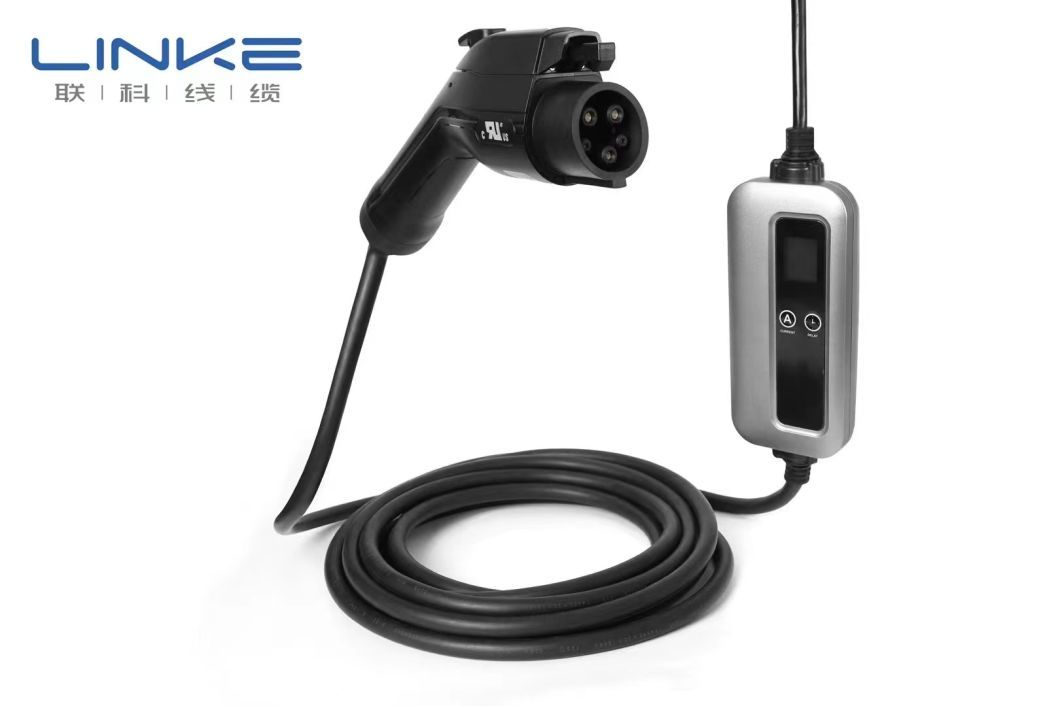

Name: 16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved
Brand: Linke
Price: 1 USD

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

Ask Lasest Price

Certification :

UL;ISO9001;ISO13485;IATF16949;TPU

Brand Name :

Linke

Price :

Negotiable

Delivery Time :

7-15 days

Payment Terms :

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability :

100000000

16A 32A EV Charger Cable 5M with TUV IEC62893 and UL Approved

TUV IEC62893 and UL Approved 16A 32A EV Charging Cable for Charging Solutions
Electrical Vehicle Charing Cable EV Charging Cable with TUV VDE(EN50620)& IEC62893 and UL

16A 32A Electrical Vehicle Charing Cable EV Cable with TUV IEC62893 and UL

SPECIFICATION		CABLE NAME	EV Cable
		CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
		RoHS Compliant

Item		A : 2C×80mm2	B : 1C×25mm2	C : 1C×4mm2	D:(3C×0.75mm2)(P2)	E:(7C×0.75mm2)
CONDUCTOR	Material	Bared copper stranded
	Size	2580/0.20 ±0.008mm	798/0.20 ±0.008mm	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar
	O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm
INSULATION	Material	Thermoplastic(EF2585,85±3A)
	Min. average thickness	1.60mm	1.20mm	1.00mm	0.50mm	0.50mm
	Min.thickness at any point	1.34mm	0.98mm	0.80mm	0.35mm	0.35mm
	O.D.	15.60±0.40mm	9.60±0.30mm	4.70±0.20mm	2.50±0.10mm	2.50±0.10mm
CABLING-1	Filler	/			Cotton	Cotton
	Material	/			AL-mylar(facing out)	Non-woven
BRAID	Material	/			Tinned copper	/
	Size	/			0.12mm,≥60%	/
In-JACKET	Material	/			TPE	TPE
	Min. average thickness	/			0.60mm	0.60mm
	Min.thickness at any point	/			0.42mm	0.42mm
	O.D.	/			7.20±0.25mm	9.70±0.25mm
CABLING	Filler	Strengthed PP rope
	Material	Non-woven(≥25% overlapping)
	Assembly	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET	Material	TPU
	Min. average thickness	2.80mm
	Min.thickness at any point	2.28mm
	O.D.	38.00+0.6/-1.00mm

Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

2,Low viscosity appearance

16A 32A Electrical Vehicle Charing Cable EV Cable with TUV IEC62893 and UL

Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to

develop better cables for customers and improve the quality of one's life.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
