Reference Standard:UL 2263
UL No.:E364879

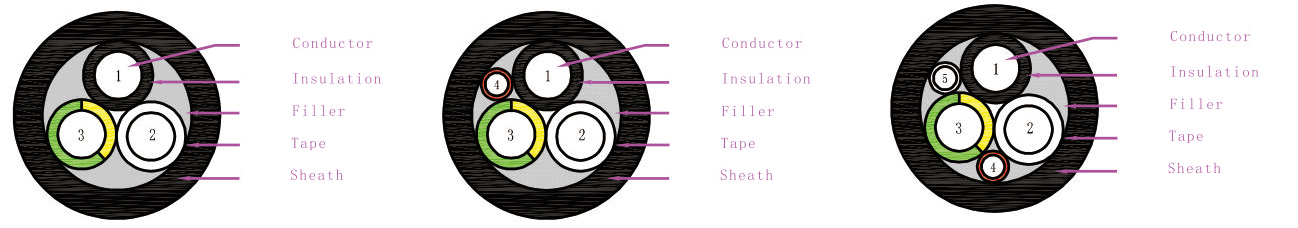

| Construction | Features |
| 1.Conductor | Rated temperature:-50℃～105℃ |
| Material: Bare Copper | Rated Voltage:1000V |
| 2.Insulation | Conductor Resistance(at 20°C):8AWG≤2.23Ω/km;10AWG≤3.51Ω/km;16AWG≤14.1Ω/km;Test method Comply with UL 2556 |
| Material: TPE | 15°C Insulation Resistance:8AWG≥34Ω.m;10AWG≥34Ω.m;16AWG≥45Ω.m;Test method Comply with UL 2556 |
| Color:Black,red,Green/Yellow or other | Dielectric Voltage: 4.0kV AC/1min(8AWG),3.0KV AC/1min(10AWG), 2.0KV AC/1min(16AWG). No Breakdown. Test method Comply with UL 2556 |
| 3.Filler | Bending Radius Min:≥6OD. |
| Material: cotton yarn | Hot Shock:150℃/1h No cracks Test method Comply with UL 2556 |
| 4.Tape | Flame Test:FT1.Test method Comply with UL 2556 |
| Material:Non-woven fabrics | Insulation tensile strength:Before Aging 5.5Mpa;After Aging(136°C/168H)≥75%Original.Test method Comply with UL 2556 |
| 5.Sheath | Insulation Elongation:Before Aging200%;After Aging(136°C/168H)≥75%Original.Test method Comply with UL 2556 |
| Material: TPE | Jacket tensile strength:Before Aging 8.3Mpa;After Aging(136°C/168H)≥75%Original.Test method Comply with UL 2556 |
| Color: Black or Orange | Jacket Elongation:Before Aging200%;After Aging(136°C/168H)≥75%Original.Test method Comply with UL 2556 |
| | Cold Bending Test:-40°C/4H,NO Cracking.Test method Comply with UL 2556 |
| | Hot Shock Test:150°C/1H,NO Cracking.Test method Comply with UL 2556 |
| Type | Main Lines Size & E | Signal Lines Size | Permissible ampacity@20°C ambient Ref. | Over diameter Ref. mm |
| EVC 1001 | 10AGW/2+10AGW | 22AGW(20AGW/18AGW/16AGW)0-6 | 32A | 12.0±0.5 |
| EVC 1002 | 9AGW/2+10AGW | 40A | 13.8±0.5 |
| EVC 1003 | 8AGW/2+10AGW | 48A | 15.0±0.5 |
| EVC 1004 | 6AGW/2+8AGW | 80A | 18.9±0.5 |
| EVC 1005 | 3AGW/4+12AGW(14AGW/10AGW) | 18AGW(20AGW/22AGW)0-8 | 170A(200A) | 28.3±1.0 |
| EVC 1006 | 2AGW/4+12AGW(14AGW/10AGW) | 200A(250A) | 31.0±1.0 |
| EVC 1007 | 1/0AGW/4+12AGW(14AGW/10AGW) | 300A-350A | 36.5±1.0 |
| EVC 1008 | 4AGW/2+14AGW | 120A | 21.0±1.0 |
| EVC 1009 | 1AGW/4+14AGW | | 250A(300A) | 34.0±1.0 |
UL 2263 EV charging cable (Suitable for CCS1)
Reference Standard:UL 2263
UL No.:E364879
| Construction | Features |
| 1.Conductor | Rated temperature:-40℃～105℃ |
| Material: Bare Copper | Rated Voltage:300V；600V or 1000V |
| 2.Insulation | Flame Test: VW-1 Test method Comply with UL 2556 |
| Material: TPE | Min: Bending Radius: ≥6*OD |
| colour:Black,Red,Green/Yellow or other | Dielectric Voltage: 1.5kVac/1min. No Breakdown Test method Comply with UL 2556 |
| 3.Filler | Cold Bending:-40℃/4h No cracks Test method Comply with UL 2556 |
| Material: cotton yarn | Hot Shock:150℃/1h No cracks Test method Comply with UL 2556 |
| 4.Tape | Oil Resistance:IRM902, 60℃/168h Tensile and Elongation ≥70% Unaged value |
| Material:Non-woven fabrics | Crush Resistance:S≤12AWG 4.45kN, 12AWG＜S≤2AWG, 11.1kN, 2AWG＜S 15.6kN |
| 5.Sheath | Weather Resistance:720hin a xenon arc weatherometer, No cracks |
| Material: TPE | Environmental Requirements:Compliant with RoHS |
| Color: Black or Orange(customizable) | |
| Type | Size | Conductor Stranded OD mm Ref. | Max. Conductor resistance mΩ/m@20℃ | Permissible ampacity@20℃ ambient Ref. | Over diameter Ref. mm | Packing M/Reel (Ref.) |
| 600V or 1000V EVE(TPE) | 3×16AWG | 1.5/1.2 | 14.1 | 12A | 10.8±0.5 | 1000m/700# |
| 3×14AWG | 1.9/1.2 | 8.88 | 16A | 11.8±0.5 | 800m/700# |
| 3×12AWG | 2.4/1.2 | 5.58 | 23A | 14.3±0.5 | 500m/700# |
| 3×10AWG | 3.0/1.2 | 3.51 | 32A | 15.6±0.5 | 500m/700# |
| 2×8AWG+10AWG | 4.3/3.0 | 2.23/3.51 | 46A | 20.9±0.8 | 500m/950# |
| 2×6AWG+8AWG | 5.4/4.3 | 1.40/2.23 | 63A | 23.4±0.8 | 400m/950# |
| 3×16AWG+1×18AWG | 1.5/1.2 | 14.1/22.4 | 12A | 11.4±0.5 | 800m/700# |
| 3×14AWG+1×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 13.5±0.5 | 500m/700# |
| 3×12AWG+1×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 14.5±0.5 | 500m/700# |
| 3×10AWG+1×18AWG | 3.0/1.2 | 3.51/22.4 | 32A | 15.8±0.6 | 500m/700# |
| 2×8AWG+10AWG+18AWG | 4.3/3.0 | 2.23/3.51/22.4 | 46A | 20.9±0.8 | 500m/950# |
| 2×6AWG+8AWG+18AWG | 5.4/4.3 | 1.40/2.23/22.4 | 63A | 23.4±0.8 | 400m/950# |
| 2×4AWG+6AWG+18AWG | 6.6/5.4 | 0.882/1.4/22.4 | 75A | 27.0±0.9 | 300m/950# |
| 3×16AWG+2×18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 12.2±0.5 | 500m/700# |
| 3×14AWG+2×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 14.1±0.5 | 500m/700# |
| 3×12AWG+2×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 15.1±0.6 | 500m/700# |
| 3×10AWG+2×18AWG | 3.0/1.2 | 3.51/22.4 | 32A | 15.8±0.6 | 500m/700# |
| 2×8AWG+10AWG+2×18AWG | 4.3/3.0 | 2.23/3.51 | 46A | 20.9±0.8 | 500m/950# |
| 2×6AWG+8AWG+2×18AWG | 5.4/4.3 | 1.40/2.23 | 63A | 23.4±0.8 | 400m/950# |
| 2×4AWG+6AWG+2×18AWG | 6.6/5.4 | 0.882/1.4 | 75A | 27.0±0.9 | 300m/950# |
| 2×2AWG+4AWG+2×18AWG | 8.2/6.6 | 0.555/0.882 | 100A | 30.5±1.0 | 400m/1200# |
| 2×1/0AWG+2AWG+4×16AGW | 10.5/8.2 | 0.349/0.555 | 200A | 38.0±1.0 | 250m/1200# |
| 2×3/0AWG+1/0AWG (2×3/0AWG+4AWG+6X18AWG) 3/0AWG Ground line minimum 4AWG | 13.05/10.5 | 0.219/0.349 | 260A | 45.0±1.0 | 150m/1200# |
| 4X1-0AWG+4AWG+6X18AWG | 10.4/6.5 | 0.351/0.882/23.6 | 300A/350A | 45.7±1.2 | 150m/1200# |
| 300V EVJE(TPE) | 3×16AWG | 1.5/1.2 | 3.51/22.4 | 12A | 9.5±0.3 | 1200m/700# |
| 3×14AWG | 1.9/1.2 | 8.88/22.4 | 16A | 10.2±0.5 | 1000m/700# |
| 3×12AWG | 2.4/1.2 | 5.58/22.4 | 23A | 11.4±0.5 | 800m/700# |
| 3×16AWG+1×18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 10.5±0.5 | 1000m/700# |
| 3×14AWG+1×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 11.1±0.5 | 80m/700# |
| 3×12AWG+1×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 12.2±0.5 | 500m/700# |
| 3×16AWG+2×18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 11.3±0.5 | 800m/700# |
| 3×14AWG+2×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 12.0±0.5 | 800m/700# |
| 3×12AWG+2×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 13.1±0.5 | 500m/700# |
| The number of signal wires can be 0~6, or more, the signal wire conductor specifications can be 16AWG, 18AWG, 20AWG, 22AWG. |
The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
