Product Description

Short description:

Electrical performance
1. Rated current: 16Amp
2. Working voltage: 250V AC
3. Insulation resistance: >1000MΩ
4. Thermal temperature rise: <50K
5. Withstand voltage: 2000V
6. Working temperature: -30℃～+50℃
7. IEC 62196-2 Electric vehicle charger cable

Product Information

Product Tags

UL standard single-phase 32A electric vehicle charging cable 3*10AWG+1*18AWG
Product introduction:

EV cable is a flexible cable that connects electric vehicles to charging piles or power sockets. High-quality oxygen-free copper conductors ensure excellent conductivity; TPE insulation material is soft and strong; the cable sheath is made of high-performance TPE, which has the characteristics of weather resistance, high and low temperature resistance, and friction resistance. The cable is soft, elastic, has a high bending index, and does not harden at low temperatures. Cables for electric vehicle conductive charging systems are suitable for pure electric vehicles, fuel cell vehicles (FCVs), and hybrid electric vehicles (HEVs), and are widely used in charging connections between electric vehicles and power sources; or for electric vehicle charging facilities and charging interfaces.

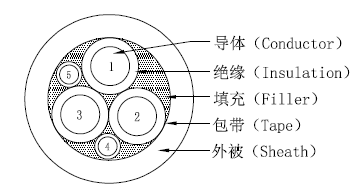

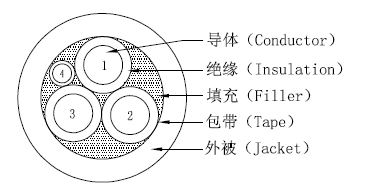

put up	feature
1. Command	Rated temperature: -40℃～105℃
Material: Bare copper	Rated voltage: 300V; 600V or 1000V
2. Insulation	Flame Test: VW-1 test method in accordance with UL 2556
Material: TPE or PVC	Minimum: Bending radius: ≥5*OD
Color: Black, White, Green/Yellow	Dielectric voltage: 1.5kVac/1min. No breakdown test method in accordance with UL 2556
3. Filling	Cold bending: -40℃/4h no crack test method complies with UL 2556
Material: PP wire	Thermal shock: 150℃/1h no crack test method complies with UL 2556
4. Tape	Oil resistance: IRM902, 60℃/168h tensile elongation ≥70% unaged value
Material: Non-woven fabric	Compressive strength: S≤12AWG 4.45kN, 12AWG＜S≤2AWG, 11.1kN, 2AWG＜S 15.6kN
5. Sheath	Weather resistance: 720hin xenon arc lamp weather resistance, no cracks
Material: TPE or PVC	Environmental requirements: Compliant with RoHS 2.0 and REACH
color:	black or orange
