    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    Ask Lasest Price
    Certification : 3C,UL,TPU,TPV, UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949
    Brand Name : Linke
    Price : Negotiable
    Delivery Time : 7-15 days
    Payment Terms : Advance 30% deposit and ship after receiving 70% final payment
    Supply Ability : 50000m/day
    • Product Details
    • Company Profile

    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    CAT7 CAT8 NETWORK CABLE performance and specifications

    Performance: Meet or exceed the performance specifications required in ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA

    l The standard meets YD/T 1019

    l Bandwidth: ≥500 HMz

    Application: Support 10G Base-T and backward compatible, backward compatible with CAT6 and CAT5e systems

    Parameters and characteristics

    l Wire gauge: 23AWG

    l Conductor material: high quality 99.99% oxygen-free copper

    l Insulating material: High density polyethylene (HDPE)

    Outer sheath material: polyvinyl chloride (PVC) Low smoke halogen-free (LSZH) optional; CMCMRCMP can be customized

    l Cable Outer diameter: 7.8±0.5mm

    l Core structure: cross keel core

    l Jacket color: Color can be customized

    l Gross weight: 17.9Kg

    l Maximum tensile force: 110N

    l Installation temperature: 0 ~ +50℃

    l Operating temperature: -20 ~ +60℃

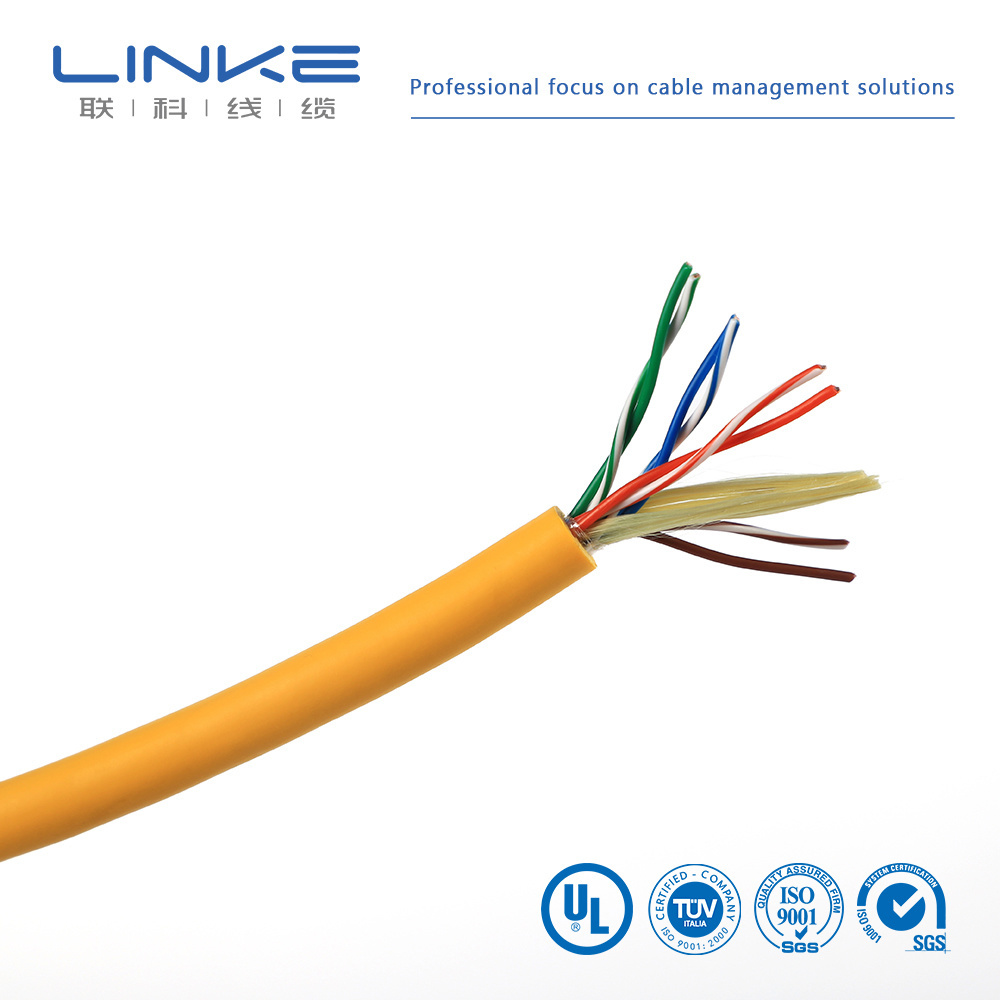

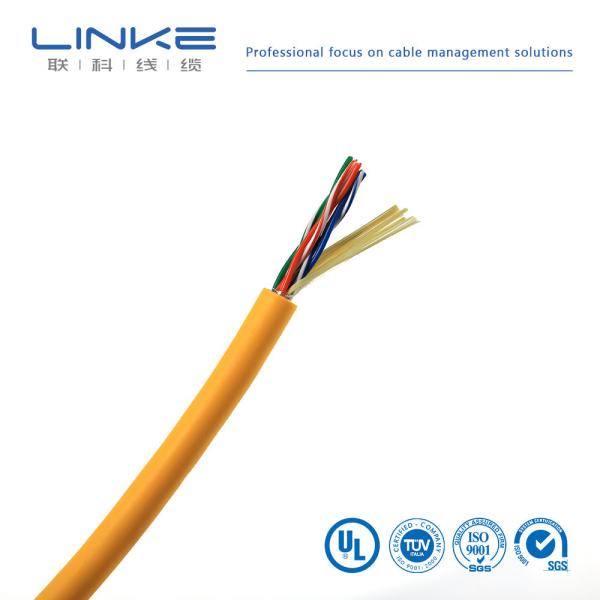

    Detailed Photos
    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    YD/T 1019-2013

    ANSI/TIA-568.2-D-2018
    ISO/IEC 11801-2017

    Product Description

    Network UTP Patch Cords

    Cat5e utp cable patch cord features 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. It exceeds the performance of the Cat5e Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 100MHz within 100 meters of cable. Cat6 utp cable patch cord feature 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. It exceeds the performance of the Cat6 Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable.

    SPECIFICATION:

    Cat5e UTP Network Patch Cords
    Cable Type Cat5e Snagless
    Shielding Type Unshielded (U/UTP)
    Cable Jacket PVC CM (Round)
    Length 3ft (0.9m) (Including Plugs)
    Data Rate Support 10/100/1000Base-T
    Standard Bandwidth 100MHz
    Conductor Type Stranded Pure Bare Copper
    Connectors RJ45 (Male)
    Gauge (AWG) 24 (7/0.20mm)
    Cable Outer Diameter (mm) 5.5± 0.4
    PoE Compatibility PoE/PoE+
    Wire Scheme T568B, Straight
    Operating Temperature -20 to +75°C (-4 to 167°F)
    Installation Temperature -10 to +50°C (14 to 122°F)

    Cat6 UTP Network Patch Cords
    Cable Type Cat6 Snagless
    Shielding Type Unshielded (U/UTP)
    Cable Jacket PVC CM (Round)
    Length 3ft (0.9m) (Including Plugs)
    Data Rate Support 1000Base-T and Maximum to 10GBase-T
    Standard Bandwidth 250MHz
    Conductor Type Stranded Pure Bare Copper
    Connectors RJ45 (Male)
    Gauge (AWG) 24 (7/0.20mm)
    Cable Outer Diameter (mm) 6.1 ± 0.4
    PoE Compatibility PoE/PoE+
    Wire Scheme T568B, Straight
    Operating Temperature -20 to +75°C (-4 to 167°F)
    Installation Temperature -10 to +50°C (14 to 122°F)

    MECHANICAL PARAMETERS:

    Tensile strength before aging 13.5Mpa (PVC), 10.0Mpa (LSZH low smoke halogen-free)
    Elongation before aging 150% (PVC), 125% (LSZH low smoke halogen-free)
    Aging time 100 × 24 hours × 7 days
    Tensile strength after aging 12.5Mpa (PVC), 8Mpa (LSZH low smoke halogen-free)
    Elongation after aging 125% (PVC), 100% (LSZH low smoke halogen-free)
    coldBending (-20 ± 2 × 4 hours) 8 times the outer diameter of the cable without cracking

    ELECTRICAL PARAMETERS:

    Transmission delay difference ≤25ns / 100m
    Transmission speed 74%
    Unbalanced capacitance to ground maximum 330pf / 100m
    DC resistance Maximum 9.5Ω / 100m
    DC resistance unbalance max 2%
    Company Profile

    Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

    In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

    wire and cable. Linke provide various cables&custom cable solutions for all over the world.

    We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

    towlobe cable, UL wire, automotive cable, etc.

    At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.

    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    Certifications

    We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

    (Single conductor,thermoplastic insulation)

    UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,

    UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

    ISO9001 and ISO13485,TS16949

    CNR- Appliance Wiring Material,

    Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

    Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
    Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2


    LINKE UL CERTIFICATION
    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    Single-conductor, thermoplastic insulation
    1007 1330 1333 1591 1723 10064 10369
    1015 1331 1569 1592 1901 10070 10483
    1185 1332 1577 1672 10012 10269
    Multiple-conductor, thermoplastic insulation
    2095 2129 2468 2586 2725 20233 20280 20963
    2103 2463 2517 2587 2835 20276 20549 21198
    2104 2464 2576 2661 2919 20279 20886 21664
    Single-conductor, thermoset insulation
    3075 3173 3320 3386 3530 3689 30005
    3123 3212 3321 3398 3577 3702
    3132 3266 3331 3512 3644 3817
    3135 3271 3385 3529 3674 3886

    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable

    Silicone Rubber Insulated Wire Cable Perfect for Consumer and Industrial Applications Braided shielding cable
    FAQ

    1. Are you a manufacturer or trading company?
    We are a professional manufacturer. We can control your order from the first begining to the last.

    Welcome to visit us. We'll pick you up in Shenzhen.

    2. How can I get a sample to test your quality?
    The samples are free for you. New clients are expected to pay for the courier cost.

    3. What's your Minimum Order Quantity?
    Normally 100m. However, the cable is very heavy.
    You'd better order a suitable quantity to avoid the high freight.
    Sea transportation is the best option.

    4. Can I get a discount?
    It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

    5. Does your company accept OEM production?
    Yes, could print your company name, we even custom the quality card to promote your company.

    For More Information, Please do feel free to contact us!
