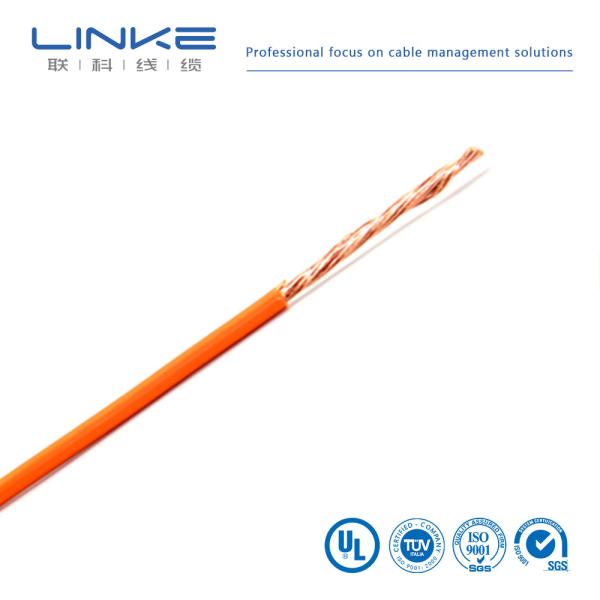

Name: AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A
Brand: Linke
Price: 1 USD

AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A

Ask Lasest Price

Brand Name :

Linke

Certification :

RoHS, TUV, CE, ISO

Price :

Negotiable

Delivery Time :

7-15 days

Payment Terms :

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability :

100000000

AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A

Customized AVS Automotive PVC Insulated Copper Wire and Cable

AV Automotive PVC Insulated Copper Wire And Cable

Details

Brand	LINKE Cable
Conductor	copper
Core	Single Core
Color	Black, Blue, Brown, customized, Dark Blue, Gray, Green, Orange, Purple, Red, white, Yellow
Temperature (°C) - flexing	–40°C to +85°C
Nominal voltage U0/U	60V
MOQ	300M/Roll

AV AVS Automotive Wire

Application:

AV type Automotive PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

•Wires used in low voltage circuits in automobiles (vechicles and motorcycles).
•General purpose wires for automobiles ; they are used In low voltage circuits such as starting, charging, lighting, signal and instrument panel circuits. Standard : JASO D 611 85°C

Product Description:
•Stranded Copper conductor 0.3 – 5.0 SQMM

Product Information

Conductor	Cu-ETP1 according to JIS C3102Cu-ETP1 according to JIS C3102
Core	Single core
Temp	–40 °C to +85 °C
Insulation	PVC
Test voltage	60V
Standard Compliance	JIS C 3406
Sheath colour	Red, Black, White, etc.
Packaging	Meter marking

AV/AVF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JIS C 3102/JIS C3406.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JIS C3406.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.5	7	0.32	1.0	32.7	0.6	2.2	2.4
0.85	11	0.32	1.2	20.8	0.6	2.4	2.6
1.25	16	0.32	1.5	14.3	0.6	2.7	2.9
2	26	0.32	1.9	8.81	0.6	3.1	3.4
3	41	0.32	2.4	5.59	0.7	3.8	4.1
5	65	0.32	3.0	3.52	0.8	4.6	4.9
8	50	0.45	3.7	2.32	0.9	5.5	5.8
10	63	0.45	4.5	1.84	1.0	6.5	6.9
15	84	0.45	4.8	1.38	1.1	7.0	7.4
0.5f	20	0.18	1.0	36.7	0.6	2.2	2.4
0.75f	30	0.18	1.2	24.4	0.6	2.4	2.6
1.25f	50	0.18	1.5	14.7	0.6	2.7	2.9
2f	37	0.26	1.8	9.5	0.6	3.0	3.4
3f	61	0.26	2.4	5.76	0.7	3.8	4.1

AVS / AVSF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.3	7	0.26	0.8	50.2	0.6	1.8	1.9
0.5	7	0.32	1.0	32.7	0.5	2.0	2.1
0.85	11	0.32	1.2	20.8	0.5	2.2	2.3
1.25	16	0.32	1.5	14.3	0.5	2.5	2.6
2	26	0.32	1.9	8.81	0.5	2.9	3.1
3	41	0.32	2.4	5.59	0.6	3.6	308
5	65	0.32	3.0	3.52	0.7	4.4	4.6
0.3f	15	0.18	0.8	48.9	0.5	1.8	1.9
0.5f	20	0.18	1.0	36.7	0.5	2.0	2.1
0.75f	30	0.18	1.2	24.4	0.5	2.2	2.3
1.25f	50	0.18	1.5	14.7	0.5	2.5	2.6
2f	37	0.26	1.8	9.5	0.5	2.9	3.1

AVSS / AVSSF

PVC automotive cable with thin wall insulation

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.3	7	0.26	0.8	50.2	0.3	1.4	1.5
0.5	7	0.32	1.0	32.7	0.3	1.6	1.7
0.85	19	0.24	1.2	21.7	0.3	1.8	1.9
1.25	19	0.29	1.5	14.9	0.3	2.1	2.2
2	37	0.26	1.8	9.5	0.4	2.6	2.7
0.3f	19	0.16	0.8	48.9	0.3	1.4	1.5
0.5f	19	0.19	1.0	34.6	0.3	1.6	1.7
0.75f	19	0.23	1.2	23.6	0.3	1.8	1.9
1.25f	37	0.21	1.5	14.6	0.3	2.1	2.2

AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A

We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.

PRODUCTION WORKSHOP

CABLE TESTING LABORATORY

Single-conductor, thermoplastic insulation
1007	1330	1333	1591	1723	10064	10369
1015	1331	1569	1592	1901	10070	10483
1185	1332	1577	1672	10012	10269
Multiple-conductor, thermoplastic insulation
2095	2129	2468	2586	2725	20233	20280	20963
2103	2463	2517	2587	2835	20276	20549	21198
2104	2464	2576	2661	2919	20279	20886	21664
Single-conductor, thermoset insulation
3075	3173	3320	3386	3530	3689	30005
3123	3212	3321	3398	3577	3702
3132	3266	3331	3512	3644	3817
3135	3271	3385	3529	3674	3886

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
