Hybrid Rov Umbilical Cable For Rov Power And Signal Transmission

Ask Lasest Price
Certification :	3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Brand Name :	Linke
Price :	Negotiable
Delivery Time :	7-15 days
Payment Terms :	Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :	50000m/day

Add to Cart

Product Details
Company Profile

Hybrid Rov Umbilical Cable For Rov Power And Signal Transmission

Product Description

Lightweight, neutrally and positively buoyant floating cables have many useful applications in underwater environments. These cables can include electrical conductors, optical fibers, and mechanical strength members. Several different buoyancy materials are available, depending on the water depth requirements. Your cable will be designed to meet your most stringent requirements.

ROV Tether

Power | Signal

Optical fiber | Strength member

Related parameters
Operating temperature	-50 to 80 °C
Force members	High strength Rakevla bulletproof wire, tensile 150 KG
Shielding	Aluminum foil packaging, 100% density
Packaging Materials	High quality non-woven fabric
Rated voltage	300/300V, 300/500V
Test voltage	2000V
Signal transmission distance	Less than 80 meters
Fiber transmission distance	Less than 10,000 meters

Apply.

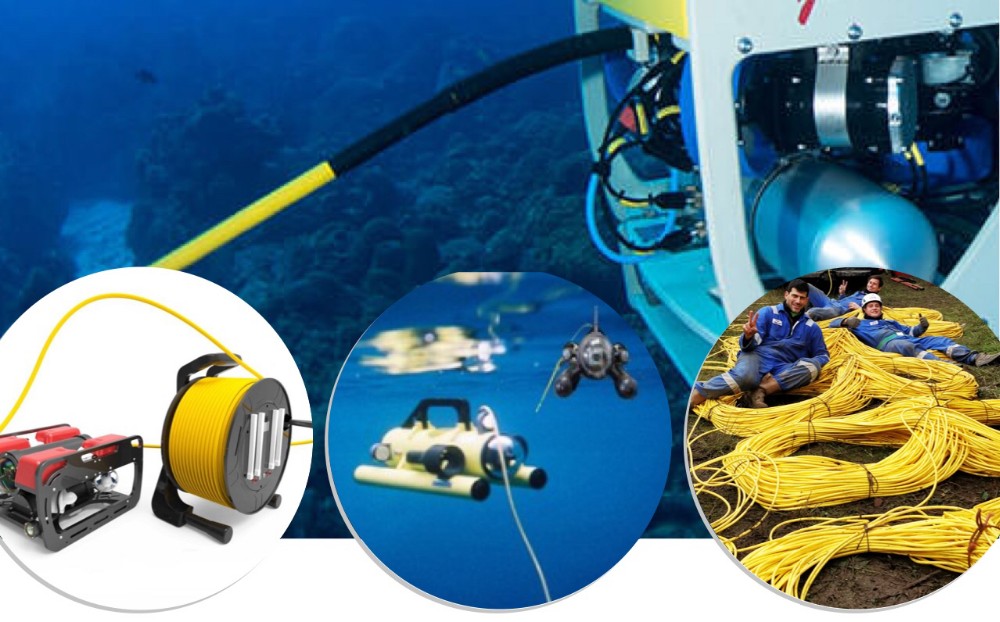

It is suitable for powering and controlling robotic cleaning systems in swimming pools such as Rov tethers and aquarium facilities as well as pumping systems for marine applications and submersible environments.

Hybrid Rov Umbilical Cable For Rov Power And Signal Transmission

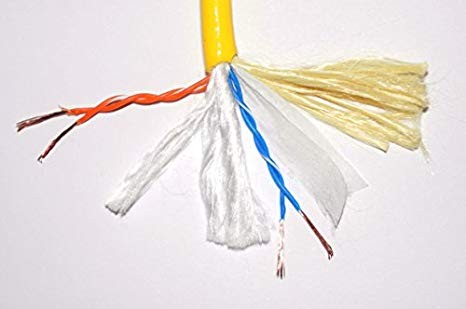

ROV Tether Signal Neutral Buoyancy Cable

● ROV tetherSignal Zero Buoyancy Cable ( 2x 25mm)

Specification	2*0.25mm
Cable diameter	6.2 mm
Conductor core	Anti-corrosion bare copper wire
Conductor structure	Twisted pair structure and hierarchical clustering
insulation	PVC waterproof mixed material
color	Black numbers and white numbers
Tensile Structure	High tensile strength of Kevlar fibers
Packaging Materials	High quality non-woven fabric
Protective cover	Unshielded
Outer sheath	Special material for buoyancy against seawater
Temperature range	Fixed installation: -40 ℃ ~ + 90 ℃. Mobile installation: -30 ℃ ~ + 80 ℃
Radiation resistance	8 × 107cj/kg
Rated voltage	Section ≤ 0.5mm² 300/300V
Test voltage	1500V
Minimum bending radius	Fixed installation 3 × d (cable outer diameter)

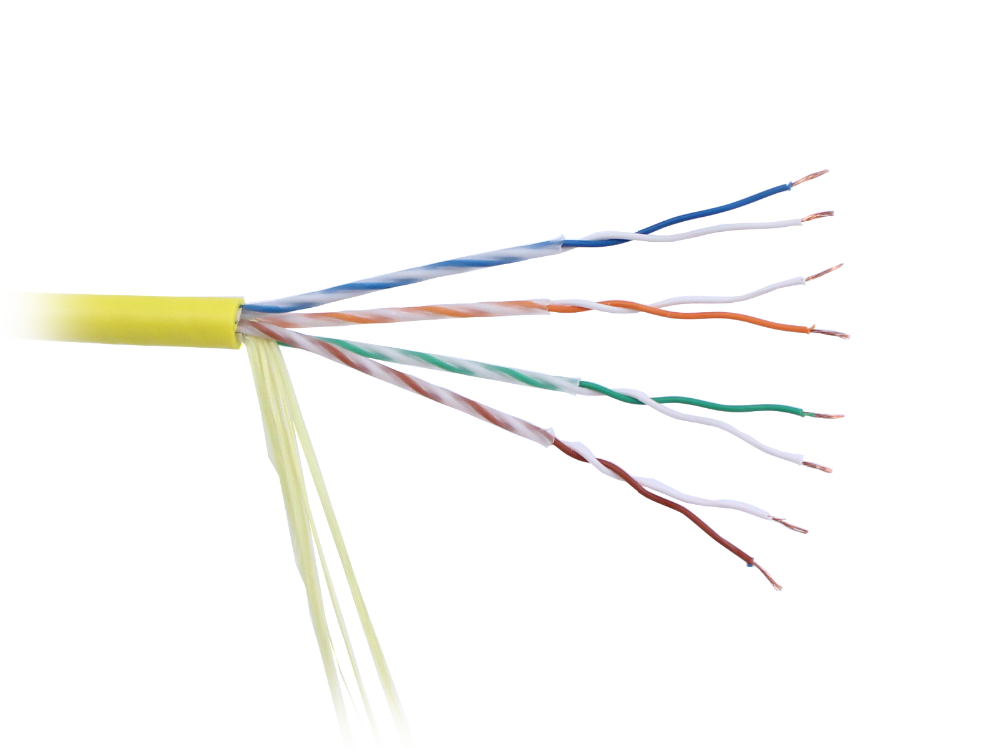

● Fathom ROV tether signal CAT5 4 twisted pairs (4x2x26AWG)

	Category 5e	Category 6
bandwidth	100Mhz	250Mhz
Anti-disturbance	normal	good
Applies to	100BASE-TX (Fast Ethernet)	1000BASE-T (Gigabit Ethernet)
Theory Download	12.8 m/s	128 m/s

Fathom ROV tether cat5.

The Fathom tether is a high quality tether cable designed for ROV and other subsea applications. It is neutrally buoyant, has a 350 lb breaking strength , and is embedded with water blocking fibers to seal any leaks. The tether has a diameter of 7.6 mm and is slimmer than most comparable ROV tethers.

Fathom ROV tether cat5.

The tether has four unshielded twisted pairs (UTP) of 26AWG wire. The pairs are colored and arranged in the same pattern as Category 5 network cables including crosstalk resistance. Each pair is individually jacketed within the cable to maintain reliable performance and minimize interference between each pair of wires.

● Signal ultra-thin remote control submersible 1 twisted pair (2x26AWG)

Tether diameter	4.0 mm	0.16 in
Weight in the air	0.012 kg/m	0.00805 lb/ft
Buoyancy in fresh water	neutral
Buoyancy in salt water	Mild positive
Wire Gauge	0.14 mm2	26 Ad Hoc Working Group
Work intensity	35 kgf	80 lbs
Breaking strength	155 kgf	350 lbs
Minimum working bending diameter	25 mm	1 inch
Sheath material	Polyurethane foam
DC resistance @ 20 °C	0.0445 Ω / ft	0.146 Ω / m
Rated voltage	300 VDC

Slender ROV tether.

His high performance, low drag tether is less than 4mm in diameter and has a single pair of conductors . It is ideal for travel, deep diving and long distance diving. The polyurethane foam jacket makes it strong and durable.

Slender ROV tether.

It is neutrally buoyant, has a 300 lb breaking strength , and is embedded with water-blocking fibers to seal any leaks. The tether has a diameter of 4.0 mm and is much slimmer than most ROV tethers.

One hundred meters of tether weighs 3 pounds (1.4 kg) and can be easily managed by hand.

The tether carries an unshielded twisted pair (UTP) of 26AWG wire . The core of the cable contains Kevlar wire for strength and Dacron fiber for space fill. Both fibers are impregnated with a water stop to stop any leaks caused by nicks or cracks in the cable.

Welcome to contact us at any time. We will provide you with accurate price within 10 hours.

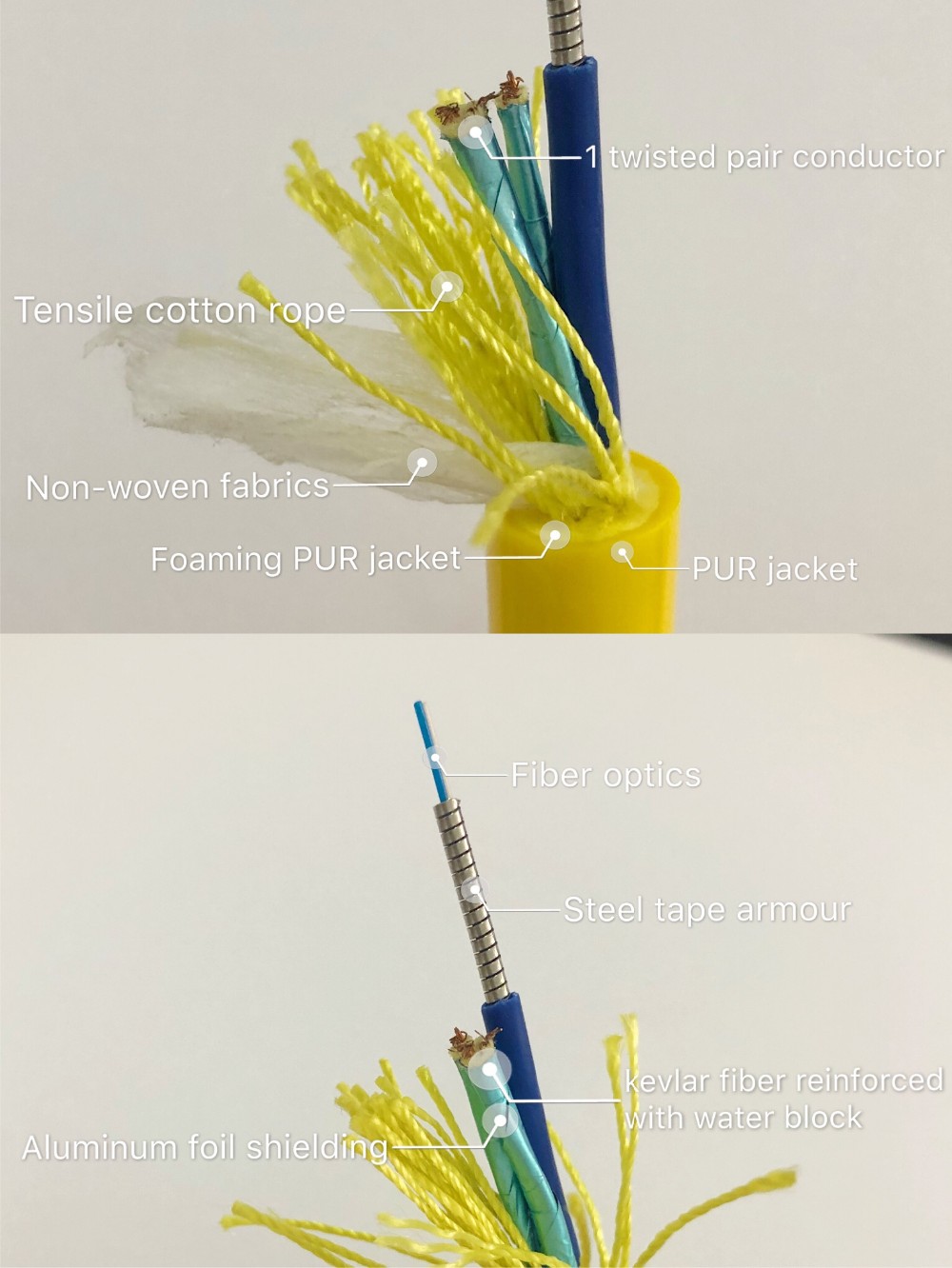

ROV tether with fiber optic cable

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
