The cable adopts special flexible special sheath material(the color
can be selected by the customer),The bending life is more than 6
million times,and the sheath will not break.
Cable has flexibility,wear resistance,oil resistance,acid and
alkali resistance,tensile resistance,excellent waterproof and
anti-aging propertise.
The designed cable specific gravity is infinitely close to the
specific gravity of water,and the cable can float on the water
surface.

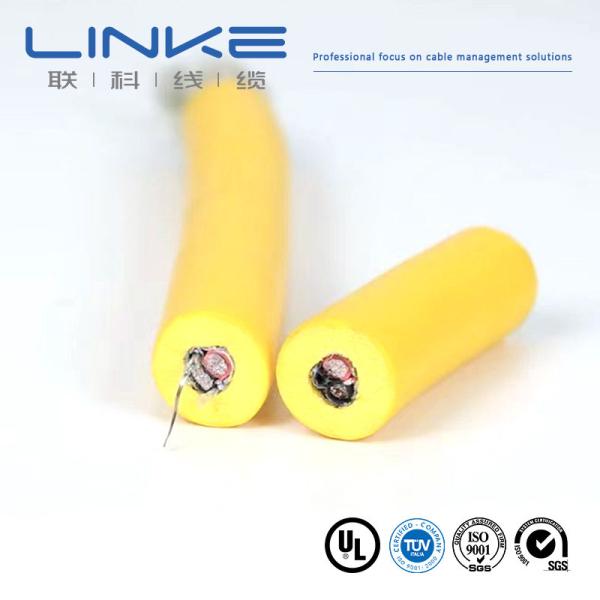

The cables are mainly divided into round and flat shapes according
to their appearance. As power transmission, signal transmission and
control connection cables between equipment, they are widely used
in offshore oil exploration, ships, ports and offshore wind power
generation, underwater equipment and other fields. Due to its
special materials and structure, seawater-proof cables have high
reliability and durability and can adapt to harsh marine
environmental conditions such as high pressure, high temperature,
salt spray and sea currents.
The seawater-proof cable series products include:
● Standard high-flexibility seawater-proof cable (including power
cable, signal transmission and control cable, etc.)
● Reinforced tensile and seawater-resistant umbilical cable (supports
customized tensile strength)
● Highly pressure-resistant seawater-proofcable(suitable for working conditions, can be designed and produced
according to underwater operating depth)
● Multi-specification floating solution for seawater-proof cable
● Comprehensive functionalcomposite seawater-proof cable (integrated with optical fiber,
power cable, signal control cable, coaxial video cable, mobile
network cable and air guide tube)
……
■ Basic structure of the product
Inner conductor: stranded oxygen-free bare copper wire (please
specify if tinned wire is used), refer to VDE 0295 class 6/IEC
60228 class 6 standard;
Insulation layer: specially modified PVC
mixture/HDPE/TPEE/TPE/ETFE, etc.;
Assembly structure: optimized cable twisting pitch to meet the
requirements of underwater operation and mobility;
Integrated components: (optional) mobile optical fiber, power
cable, signal control cable, coaxial video cable or mobile network
cable, air duct, etc.
Tensile component: (optional) tensile steel wire rope or Kevlar
fiber;
Reinforcement layer: composite Kevlar reinforcement layer;
Shielding layer: (optional) high bending resistance tinned wire
braided shield, with better anti-electromagnetic interference
performance;
Outer sheath: special PUR, corrosion-resistant and
hydrolysis-resistant. Customized sheath color is supported
■ Technical index parameters
Working voltage: 0.6/1kV and belowTest
voltage : 2500VInsulation resistance: ≥20MΩ/km (20℃) Bending radius
---Mobile installation: 7.5*D
---Fixed installation: 4*DWorking
temperature: -40 ℃~+90℃ No harmful substances: RoHSElectromagnetic compatibility: Complies with the Electromagnetic Compatibility
Directive (EMC) Flame retardant properties: Refer to VDE 0472-804 Part B test standard, and IEC 60332-1
Remark:
1. The cable cross-section, number of cores, and approximate outer
diameter of the cable are not limited to those listed in the
sample. Please contact our company for more specifications.
2. G = with yellow-green grounding wire, X = without yellow-green
grounding wire.
3. The cable can achieve more cycles in actual use. Please contact
our company for details.
4. The manufacturer supports customization and can design and
produce cables that meet more special working conditions according
to the application scenarios.
