Soft Insulation UL1569 Cable With PVC Jacket And Customization Electronic wire

Ask Lasest Price
Certification :	3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Brand Name :	Linke
Price :
Delivery Time :	7-15 Days
Payment Terms :	Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :

Add to Cart

Product Details
Company Profile

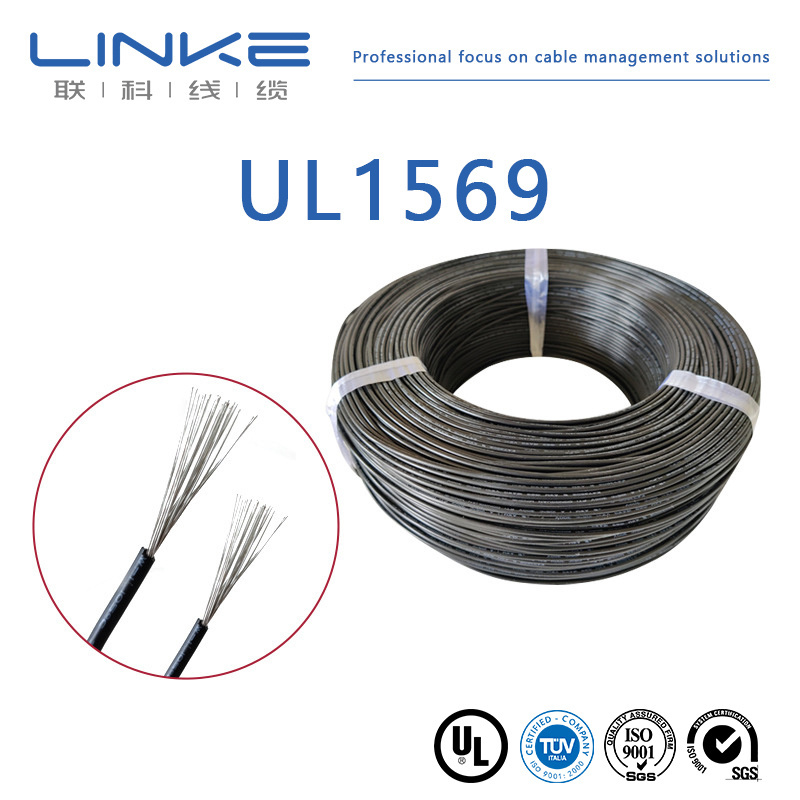

Soft Insulation UL1569 Cable With PVC Jacket And Customization Electronic wire

UL1569 Communication Cable with Super Soft Insulation PVC Jacket and Customization

Polyvinyl chloride wire and cable PVC wire&Cable

UL Style Number:1569

Specifications

Rated voltage: 300V

Rated Temperature: 105℃

Standard: UL758/UL1581

Applications

Internal wiring of appliances.

Marking:E364879 AWM 1569 **AWG VW-1 105℃ 300V C AWM I A 105℃ 300V FT1 Linke Cable

Note: Wire specifications can be customized

Conductor			Insulation		Max. Conductor Resistance(Ω/KM)
Size(AWG)	Construction(No./mm)	Diameter(mm)	Nominal thickness(mm)	Diameter(mm)	Bare copper	Tinned copper
32	7/0.08	0.24	0.38	1.00±0.05	563.5	588.9
30	7/0.10	0.30	0.38	1.10±0.05	354	381
28	7/0.127	0.38	0.38	1.20±0.10	223	239
26	7/0.16	0.48	0.38	1.30±0.10	140	150
24	7/0.20	0.60	0.38	1.40±0.10	87.6	94.2
22	7/0.254	0.78	0.38	1.60±0.10	55.4	59.4
20	26/0.16	0.94	0.38	1.80±0.10	34.6	36.7
18	41/0.16	1.18	0.38	2.10±0.10	21.8	23.2
16	26/0.254	1.49	0.38	2.40±0.10	13.7	14.6
14	41/0.254	1.88	0.38	2.80±0.10	8.62	8.96
12	65/0.254	2.36	0.38	3.30±0.10	5.43	5.64
10	105/0.254	3.00	0.38	3.90±0.15	3.409	3.546

Colours:(Black),(Brown),(Red),(Orange),(Yellow),(Green),(Blue),(Purple),(Gray),(White),(Yellow/Green),(Transparent)

Super Soft Insulation PVC Jacket Coaxial Flexible Electric Wire UL1569 Communication Cable

Conductor : Flexible Bare annealed copper wire

Insulation:PVC,TPU,XLPE,SILICOCNE

Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.

SQ MM sizes (European style) :0.1-100SQ
AWG sizes (North American style) :1AWG-30AWG,

Wide temperature range: -60°C to 200°C

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

wire and cable. Linke provide various cables&custom cable solutions for all over the world.

We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-

engineer approach to develop better cables for customers and improve the quality of one's life.

Single-conductor, thermoplastic insulation
1007	1330	1333	1591	1723	10064	10369
1015	1331	1569	1592	1901	10070	10483
1185	1332	1577	1672	10012	10269
Multiple-conductor, thermoplastic insulation
2095	2129	2468	2586	2725	20233	20280	20963
2103	2463	2517	2587	2835	20276	20549	21198
2104	2464	2576	2661	2919	20279	20886	21664
Single-conductor, thermoset insulation
3075	3173	3320	3386	3530	3689	30005
3123	3212	3321	3398	3577	3702
3132	3266	3331	3512	3644	3817
3135	3271	3385	3529	3674	3886

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
