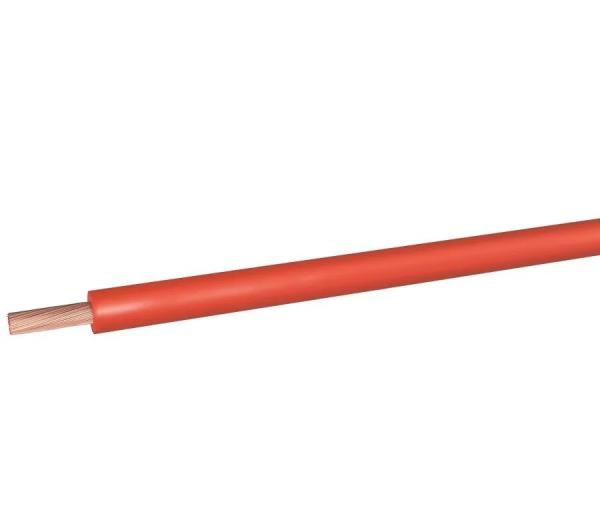

Name: Automotive Silicone Rubber Cable AVS AV Avf Avsf Avssf Avss Avssf Avssxf
Brand: Linke
Price: 1 USD

Automotive Silicone Rubber Cable AVS AV Avf Avsf Avssf Avss Avssf Avssxf

Ask Lasest Price

Brand Name :

Linke

Certification :

RoHS, TUV, CE, ISO

Price :

Negotiable

Delivery Time :

7-15 days

Payment Terms :

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability :

100000000

Automotive Silicone Rubber Cable AVS AV Avf Avsf Avssf Avss Avssf Avssxf

AVS AV AVF AVSF AVSSF AVSS AVSSf AVSSXF Automotive Cable

AV AVS AVF AVSS 0.5mm 0.75mm 0.85mm 1.25mm automotive wires

Will stand up in the field to extreme high heat conditions and wet locations, also know as high-temperature automotive wire.
Colors: BLACK, BLUE, RED, GREEN, WHITE, YELLOW, GRAY, ORANGE, BROWN AND PINK
Highest quality GXL wire, Made In China for extreme conditions. Greater than 99 percent pure copper. For use in standard automotive, motorcycle, truck/trailer applications.
It's so tough that it's commonly found in automotive applications and engine compartments where vibration and heat can cause wire fatigue. Meets SAE J1128 standards for electrical wiring in surface vehicles,A step up from avss wire, the polyethylene coating of this wire is extra-tough, operating temperature range of -40 To +125 degrees

Specification

item	value
Place of Origin	China
province	Guangdong
Brand Name	3F
Model Number	AVSS
Type	insulated
Application	Heating
Conductor Material	Copper
Conductor Type	Stranded
Insulation Material	pvc
Conductor Type	bare/tinned copper
Product name	AVSS
Color	mutiple
Rated Voltage	60V
Rated Temperature	80 Degree celsius
Standard	ROSH/REACH
Packing	500/1000m per roll
MOQ	500M
Usage	electronic connection
Flammability	VW-1

Automotive Silicone Rubber Cable AVS AV Avf Avsf Avssf Avss Avssf Avssxf

AV/AVF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JIS C 3102/JIS C3406.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JIS C3406.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.5	7	0.32	1.0	32.7	0.6	2.2	2.4
0.85	11	0.32	1.2	20.8	0.6	2.4	2.6
1.25	16	0.32	1.5	14.3	0.6	2.7	2.9
2	26	0.32	1.9	8.81	0.6	3.1	3.4
3	41	0.32	2.4	5.59	0.7	3.8	4.1
5	65	0.32	3.0	3.52	0.8	4.6	4.9
8	50	0.45	3.7	2.32	0.9	5.5	5.8
10	63	0.45	4.5	1.84	1.0	6.5	6.9
15	84	0.45	4.8	1.38	1.1	7.0	7.4
0.5f	20	0.18	1.0	36.7	0.6	2.2	2.4
0.75f	30	0.18	1.2	24.4	0.6	2.4	2.6
1.25f	50	0.18	1.5	14.7	0.6	2.7	2.9
2f	37	0.26	1.8	9.5	0.6	3.0	3.4
3f	61	0.26	2.4	5.76	0.7	3.8	4.1

AVS / AVSF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.3	7	0.26	0.8	50.2	0.6	1.8	1.9
0.5	7	0.32	1.0	32.7	0.5	2.0	2.1
0.85	11	0.32	1.2	20.8	0.5	2.2	2.3
1.25	16	0.32	1.5	14.3	0.5	2.5	2.6
2	26	0.32	1.9	8.81	0.5	2.9	3.1
3	41	0.32	2.4	5.59	0.6	3.6	308
5	65	0.32	3.0	3.52	0.7	4.4	4.6
0.3f	15	0.18	0.8	48.9	0.5	1.8	1.9
0.5f	20	0.18	1.0	36.7	0.5	2.0	2.1
0.75f	30	0.18	1.2	24.4	0.5	2.2	2.3
1.25f	50	0.18	1.5	14.7	0.5	2.5	2.6
2f	37	0.26	1.8	9.5	0.5	2.9	3.1

AVSS / AVSSF

PVC automotive cable with thin wall insulation

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section	No. of strands	Dia. Single Wire Max.	Dia. Conductor Max.	Elec. Resistance at 20 °C	Wall Thickness	O.D. Min	O.D. Max
mm2		mm	Mm	mΩ/m	mm	mm	mm
0.3	7	0.26	0.8	50.2	0.3	1.4	1.5
0.5	7	0.32	1.0	32.7	0.3	1.6	1.7
0.85	19	0.24	1.2	21.7	0.3	1.8	1.9
1.25	19	0.29	1.5	14.9	0.3	2.1	2.2
2	37	0.26	1.8	9.5	0.4	2.6	2.7
0.3f	19	0.16	0.8	48.9	0.3	1.4	1.5
0.5f	19	0.19	1.0	34.6	0.3	1.6	1.7
0.75f	19	0.23	1.2	23.6	0.3	1.8	1.9
1.25f	37	0.21	1.5	14.6	0.3	2.1	2.2

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.
Automotive Silicone Rubber Cable AVS AV Avf Avsf Avssf Avss Avssf Avssxf

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
