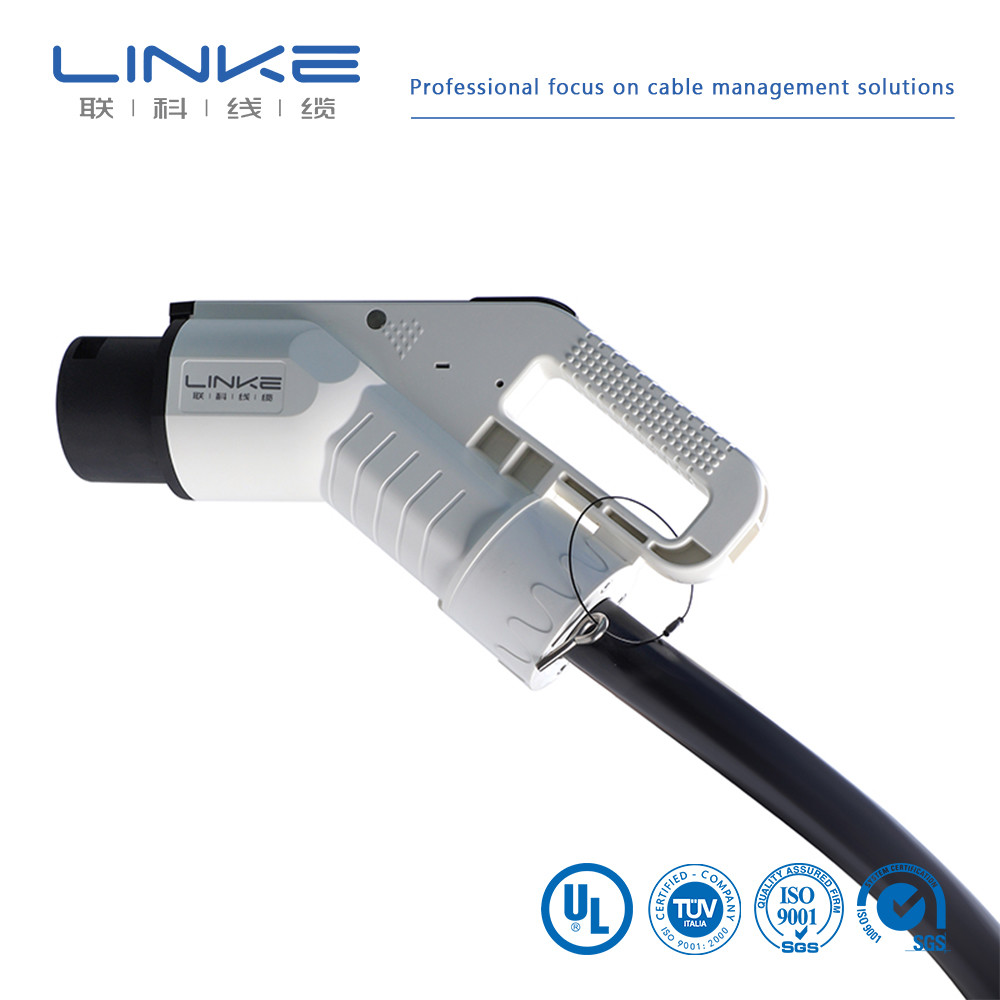

V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal

Overview

Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, with good

ergonomic design and beautiful appearance. The product has excellent protection grade, the

protection grade of the Vehicle connector reaches IP67, and the protection grade coupled with

the vehicle socket is IP54. Copper alloy terminal, silver plating on the surface, V0 grade

thermoplastic shell material, wire length and rated current can be customized according to

customer requirements.

Parameters

. Rated voltage: 220V AC( single-phase)/380V AC(three-phase)

. Rated current : 16A, 32A

. Ambient temperature: -35℃— 55℃

. Ambient Humidity : 5%—95%

. IP degrees:IP67(Vehicle connector)；IP54(combination of the socket-outlet or connector)

. Cable outer sheath material :TPE

. Cable structure :

n single-phase 16A: 3 ×2.5mm²+1×0.75mm² OD =11mm

n single-phase 32A:: 3 ×6mm²+1×0.75mm² OD =13.5mm

n three-phase 16A: 5 ×2.5mm²+1 ×0.75mm² OD =13.5mm

n three-phase 32A:: 5 ×6mm²+1 ×0.75mm² OD =16.5mm

. Insertion/withdrawal force: 10N-100N

. Vehicle drive over: 10000N

. Connector material: PC, PA

. Flame Rating: UL94 V-0

. Connection terminal: Brass, silver plated

. Insulation resistance: ≥100MΩ

. Dielectric strength :2000VAC 1min

. Insertion/withdrawal cycles :＞10000 次

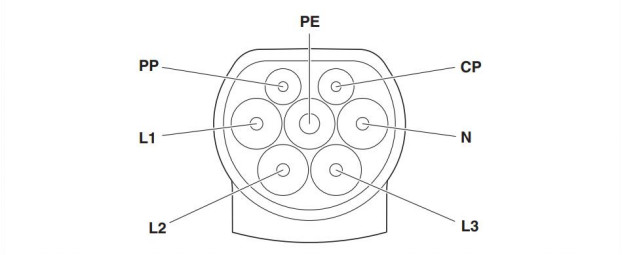

Connection diagram

V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal

Electrical parameter value and function definition of contact

Contact number/identification	Rated voltage and current	Function definition
1-(L1)	250 V 10 A/16 A/32 A	AC power supply (single phase)
1-(L1)	440 V 16 A/32 A/63 A	AC power supply (three phase)
2-(L2)	440 V 16 A/32 A/63 A	AC power supply (three phase)
3-(L3)	440 V 16 A/32 A/63 A	AC power supply (three phase)
4-(N)	250 V 10 A/16 A/32 A	Neutral (single phase)
4-(N)	440 V 16 A/32 A/63 A	Neutral (single phase)
5-(PE)		PE
6-(PP)	0V~30V2A	proximity contact
7-(CP)	0V~30V2 A	control pilot
