    UL 2587 Low Voltage Electric Motor Cable with FEP Insulation and PVC Jacket PVC Insulated Tinned Wire

    Ask Lasest Price
    Brand Name : Linke
    Certification : 3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949
    Price : Negotiable
    Delivery Time : 7-15 days
    Payment Terms : Advance 30% deposit and ship after receiving 70% final payment
    Supply Ability : How many meters per day
    • Product Details
    • Company Profile

    UL 2587 Low Voltage Electric Motor Cable with FEP Insulation and PVC Jacket PVC Insulated Tinned Wire

    Low Voltage UL 2587 Cable PVC Jacket Cable

    Detailed Photos

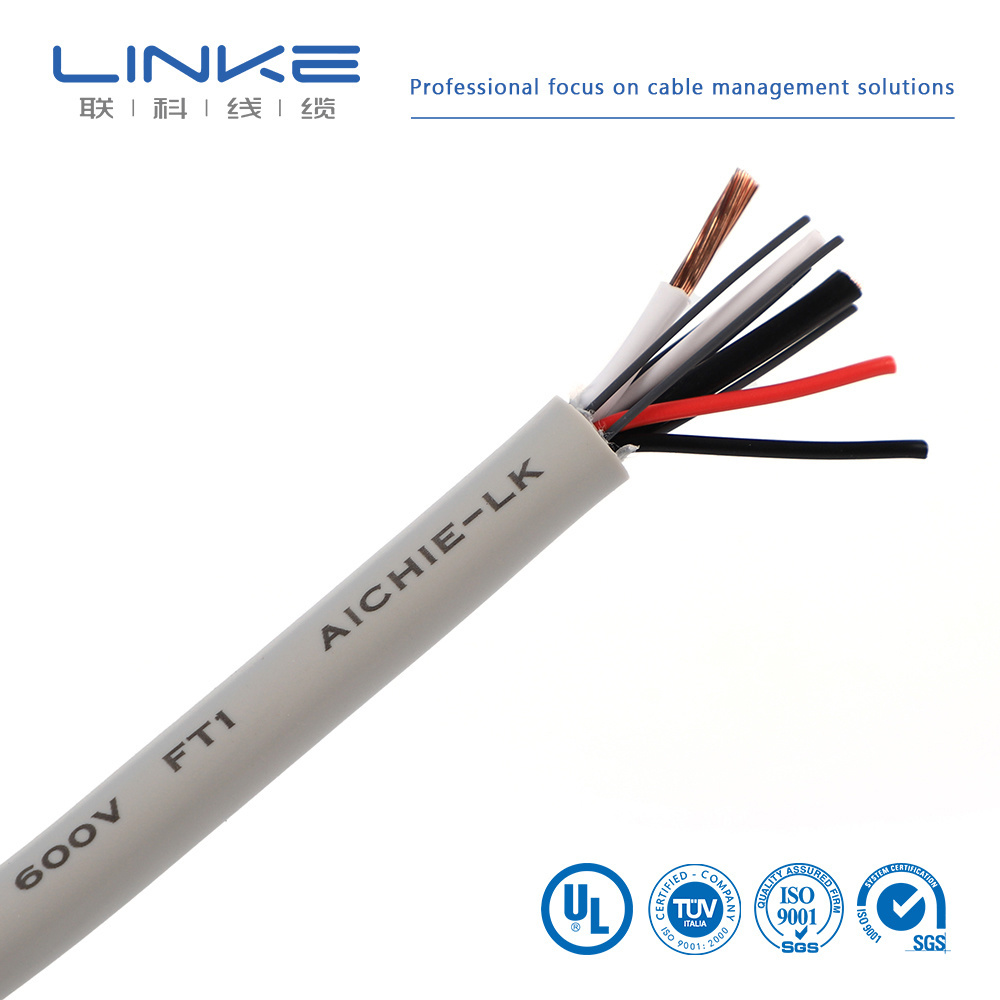

    Low Voltage UL 2587 Cable PVC Jacket Cable
    For internal wiring of electronic and electrical equipment and appliance, motor, automation machine, machine tool equipment, logistics transportation equipment, cranes, automatic elevators, lifting parking, measurement, detection and control, air conditioning systems, refrigeration equipment, office automation equipment and data processing systems, driving, etc.
    Product Description

    Application

    Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment and moderate flexing applications.

    Technical Data

    Standard: UL – Std. 758; Control cable of special – PVC to UL AWM; Style 2587 cores according to UL 1015

    Nominal Voltage: 600V

    Test Voltage: 3000V

    Temperature Range: Flexing -5°C to +90°C. Fixed installation -20°C to + 90°C

    Insulation Resistance : Min 20 MΩ x km

    Minimum Bending Radius: For permanent approx, 7.5 x cable ø

    Cable Construction

    • Bare copper, fine wire conductors 0.5 – 35 Sq. mm (as per AWG – cross sections).
    • Special PVC core insulation class 43 to UL Standard 1581; color codes as per H05VV – F upto 5 cores.
    • Black conductors with consecutive numbering in white for above 5 cores.
    • Green – yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with optimal lay – length.
    • Special PVC outer sheath class 43 to UL Standard 1581 colour grey (RAL 7001).
    • PVC self – extinguishing and flame retardant, test method VW – 1, FT 1.

    Properties

    • Suitable for installation in dry, moist or wet environment.
    • Resistant to mineral oils, synthetic oils and water based coolants. Aids easy stripping of sheath due to use of adequate Talc.

    Product Item:UL 2587
    Conductor:Bare copper
    Insulation:FEP
    Production Specification:According to customer requirements
    Color:Black, Orange, Red ,Yellow ,Blue ,White,Green,Brown,Transparent
    Jacket:PVC
    Voltage:600V
    Rated Temperature:90ºC
    Company Profile

    Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

    Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

    cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

    braided cable, towlobe cable, UL wire, automotive cable, etc.

    At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

    to develop better cables for customers and improve the quality of one's life.

    Low Voltage UL 2587 Cable PVC Jacket CableLow Voltage UL 2587 Cable PVC Jacket Cable
    FAQ

    1. Are you a manufacturer or trading company?
    We are a professional manufacturer. We can control your order from the first begining to the last.

    Welcome to visit us. We'll pick you up in Shenzhen.

    2. How can I get a sample to test your quality?
    The samples are free for you. New clients are expected to pay for the courier cost.

    3. What's your Minimum Order Quantity?
    Normally 100m. However, the cable is very heavy.
    You'd better order a suitable quantity to avoid the high freight.
    Sea transportation is the best option.

    4. Can I get a discount?
    It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

    5. Does your company accept OEM production?
    Yes, could print your company name, we even custom the quality card to promote your company
